SHIP DECK MAINTENANCE : BILGE PIPE HOLE!

<갑판정비요약>
1. 내용 : BILGE PIPE 파공부 작업!
2. 상태 : NO.4 BILGE(P) 알람발생 및 배출불가.
3. 원인 : 파이프덕트내 NO.4 BILGE(P) PIPE LINE 파공.
4. 조치 :

  1) 밀폐구역 작업이므로 위험작업허가서에 따름.

  2) 파이프덕트내 BILGE PIPE 및 유압밸브 점검.

  3) 파공부 식별.

  4) 파이프 커플링으로 임시 조치.

  5) 빌지 배출 상태 확인후 작업종료.
5. 재발방지 : 주기적인 점검 및 교육.

<Summary of SHIP DECK MAINTENANCE>

1. Content: BILGE PIPE hole work!

2. Status: NO.4 BILGE(P) alarm and discharge impossible.

3. Cause: No.4 BILGE(P) PIPE LINE breakage in the pipe duct.

4. Action:

  1) As it is a closed area work, it is subject to the dangerous work permit.

  2) Check the BILGE PIPE and hydraulic valve in the pipe duct.

  3) Identification of damage(hole).

  4) Temporary measure with pipe coupling.

  5) After checking the bilge discharge status, the work is finished.

5. Prevention of recurrence: periodic inspection and training.



HOLE OF BILGE PIPE IN DUCT KEEL

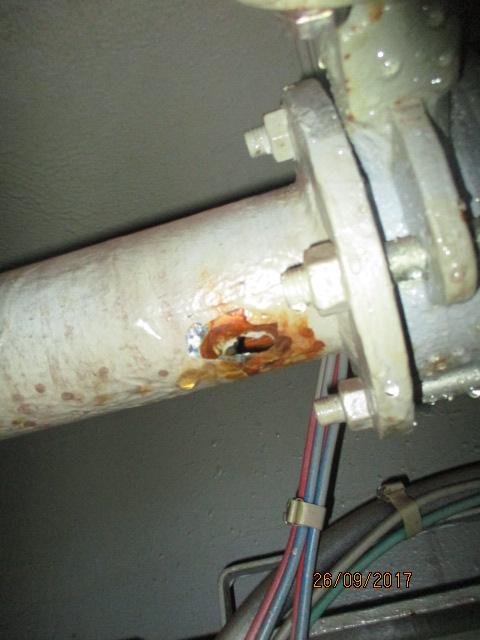

HOLE OF BILGE PIPE

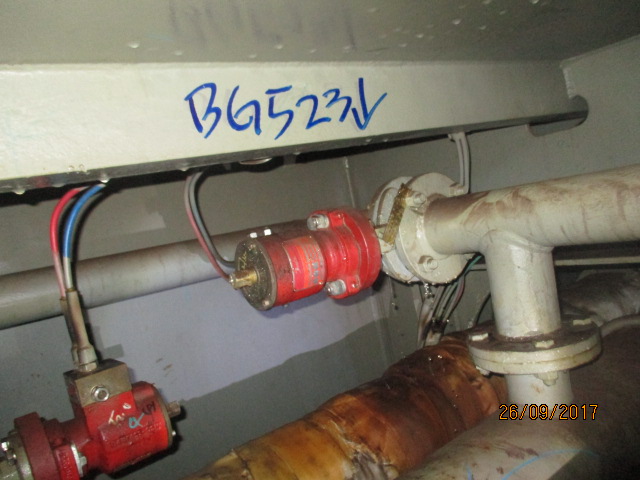

HYDRO VALVE OF BILGE

LEAKAGE OF BILGE DUE TO PIPE HOLE

NARROW WORKING SPACE

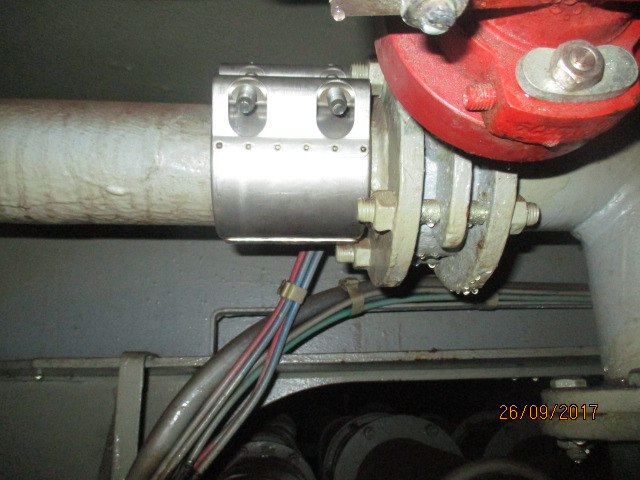

TEMPORARY MEASURES : PIPE COUPLING



WORK DONE

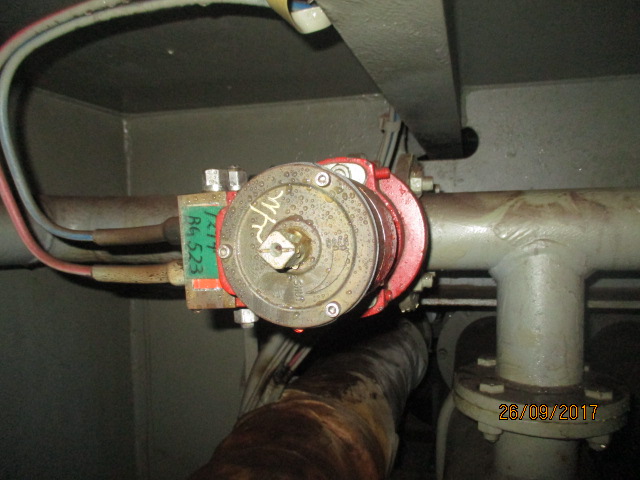

HYDRO VALVE OF NO.4 BILGE (OPEN/CLOSE)
