SHIP DECK MAINTENANCE : PILOT LADDER RENEWAL!

<갑판작업요약>

1. 내용 : 도선사용 사다리 신환 작업!

2. 상태 : 잦은 사용으로 ROPE 및 STEP 상태 불량.

3. 조치 :

  1) 기존 도선사용 사다리 분해하여 재사용 가능한 발판 취외.

  2) STEP 간격(30CM)에 맞는 틀 제작.

  3) ROPE에 STEP들을 끼워넣고 양 끝을 팽팽하게 고정.

  4) STEP 간격 틀에 맞추어 매듭을 넣어 STEP을 고정.

  5) 완성된 도선사용 사다리를 윈치에 격납 및 작동 테스트 시행.

4. 재발방지 : 주기적인 점검 및 교육.



<Summary of SHIP DECK MAINTENANCE>

1. Content: Renewal of a PILOT LADDER!

2. Condition: Bad ROPE and STEPS due to frequent use.

3. Action:

  1) Disassemble the PILOT LADDER and take out reusable STEPS.

  2) Make a frame that fits the STEP interval (30CM).

  3) Insert the STEPs into the ROPE and fix both ends tightly.

  4) Fix the STEP by inserting a knot according to the STEP spacing frame.

  5) The completed PILOT LADDER is stored in the winch and the operation test is conducted.

4. Prevention of recurrence: periodic inspection and training.

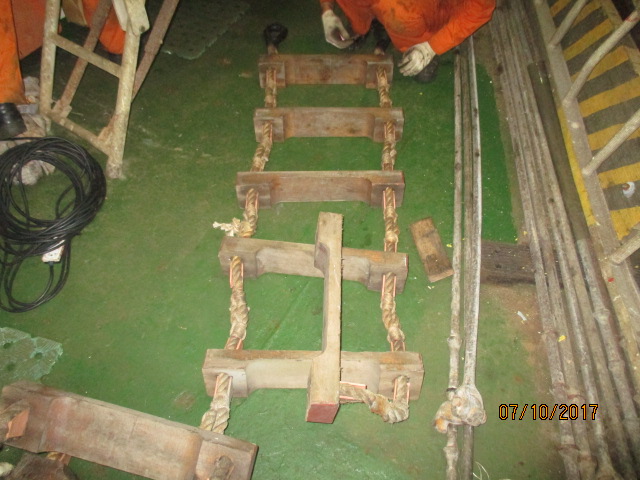

DISASSEMBLE PILOT LADDER

TAKE OUT REUSABLE STEPS

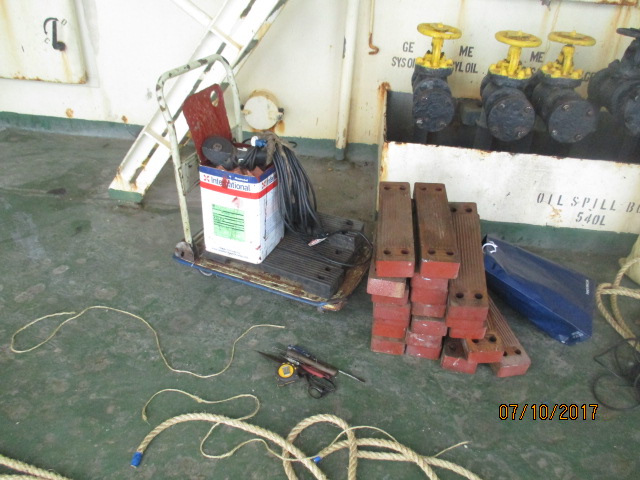

PREPARE PILOT LADDER STEPS FOR RENEWAL

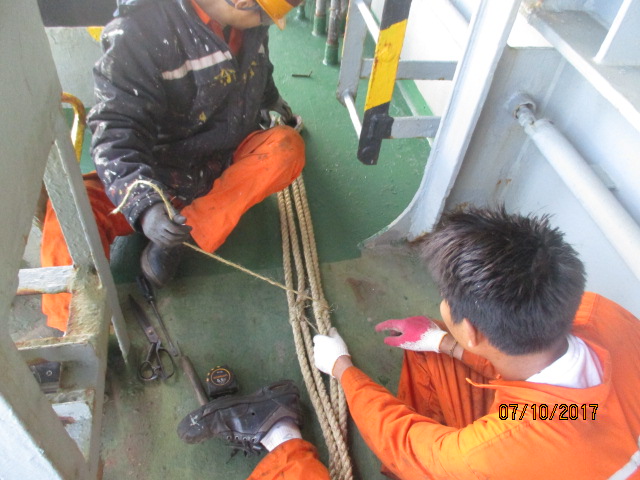

MAKE THIMBLE OF ROPE TO CONNECT IN WINCH



THIMBLE OF PILOT LADDER TO CONNECT IN WINCH

MAKE FRAME FOR INTERVAL OF PILOT LADDER STEPS

FIX PILOT LADDER STEP BY USING FRAME

WORK DONE

FIT ON THE PILOT LADDER WINCH
